27072 Murr Elektronik I/O Distributors
Part#:27072
Manufacturer:Murr Elektronik
Category:I/O Distributors
Product Lifecycle:Active
Get a quick Quote!

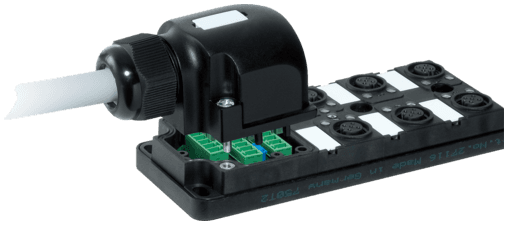

27072 Murrelektronik - MVP12, 4XM12, 5POLE, PLUGGABLE CABLE, 5.0m PUR/PVC 8x0,34+5x0,75, with potent. sep.
About the manufacturer: Murr Elektronik is one of the manufacturers that offers I/O Distributors that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 27072 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight 680 g
- Series Distribution Systems
- Product article number of manufacturer 27072
- PIN 4 (NO)/(S1)
- PIN 5 (Earth)
- PIN 2 (NC)/(S2)
- PIN 3 (-)
- Bend radius (fixed) 10× outer Ø
- PIN 1 (+)
- Material (jacket) PUR/PVC
- Bend radius (moving) 12× outer Ø
- Temperature range (fixed) -30...+80 °C
- Cable number 374
- Temperature range (mobile) -30...+80 °C
- Protection IP65 and IP67 when plugged and screwed down (EN 60529)
- Outer Ø 9.2 mm ±5%
- Material PBT
- Color (jacket) gray
- Wire isolation PVC
- C-track properties 1.5 Mio.
- Jacket Color gray
- No./diameter of wires 8× 0.34 + 5× 0.75 mm²
- Dimensions H×W×D 100×50.2×17 mm
- Temperature range -20...+80 °C
- Operating voltage 24 V DC ±25%
- Signal per port 2
- Total current max. 2× 8 A
- Operating current per contact max. 4 A
- Housing Plastic, flame retardant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
27072 Description
27072 Murrelektronik - MVP12, 4XM12, 5POLE, PLUGGABLE CABLE, 5.0m PUR/PVC 8x0,34+5x0,75, with potent. sep.
Related documents 27072 Specs
