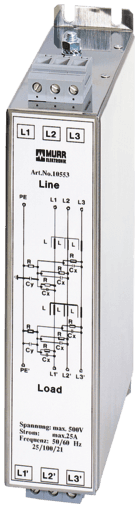

10550 Murr Elektronik Line Filters & Conditioners

Product Details

• Weight
  1700 g
• Series
  Filter Modules
• Product article number of manufacturer
  10550
• Functional description
  The 3-phase and 1-/2-stage EMC filters MEF 3/1-3/2 are used in the range 0.1...30 MHz and dampen interferences found in cables from the mains, supply units and control systems. They are suitable for TN-C-mains. The best results are obtained with short con
• Dimensions H×W×D
  226×50×140 mm
• Connection
  Screw connection, touch protected
• Operating voltage
  max. 3× 500 V AC
• Test isolation voltage
  3.3 kV (L-N), 2 s; 3.1 kV (L-L), 2 s
• Mounting method
  screw fixing
• Connection cross section
  0.2...10 mm² single core (AWG 24...7); 0.2...6 mm² multiple core (AWG 24...9)
• Consumption
  max. 15 mA (250 V AC)
• Operating frequency
  50...60 Hz
• Climatic category
  25/085/21 (EN 60068-1)
• Overload current
  18× (IN t) max. 0.5 ms; 1.5× (IN t) max. 1 min. (1× per hour)
