10531 Murr Elektronik Line Filters & Conditioners

Name: 10531
Brand: Murr Elektronik
Price: 312.15 USD
Availability: BackOrder

Part#:10531

Manufacturer:Murr Elektronik

Category:Line Filters & Conditioners

Product Lifecycle:Active

Get a quick Quote!

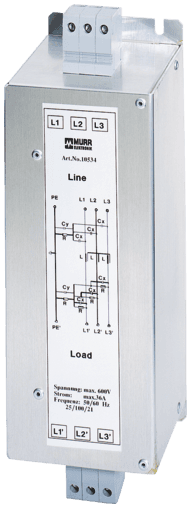

10531 Murrelektronik - MEF EMC-FILTER 3-PHASE 1-STAGE, I:8A U:3x600 VAC book-style

About the manufacturer: Murr Elektronik is one of the manufacturers that offers Line Filters & Conditioners that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.

Check out the 10531 Murr Elektronik price in the box on the right side or send a quick quote.

Product Details

Weight
1300 g
Series
Filter Modules
Product article number of manufacturer
10531
Functional description
The 3-phase and 1-/2-stage EMC filters MEF 3/1-3/2 are used in the range 0.1...30 MHz and dampen interferences found in cables from the mains, supply units and control systems. They are suitable for TN-C-mains. The best results are obtained with short con
Dimensions H×W×D
250×90×100 mm
Test isolation voltage
3.3 kV (L-N), 2 s; 3.1 kV (L-L), 2 s
Mounting method
screw fixing
Connection
Screw connection, touch protected
Climatic category
25/085/21 (EN 60068-1)
Operating voltage
max. 3× 600 V AC
Overload current
18× (IN t) max. 0.5 ms; 1.5× (IN t) max. 1 min. (1× per hour)
Connection cross section
0.2...10 mm² single core (AWG 24...7); 0.2...6 mm² multiple core (AWG 24...9)
Operating frequency
50...60 Hz
Consumption
max. 10 mA (250 V AC)
