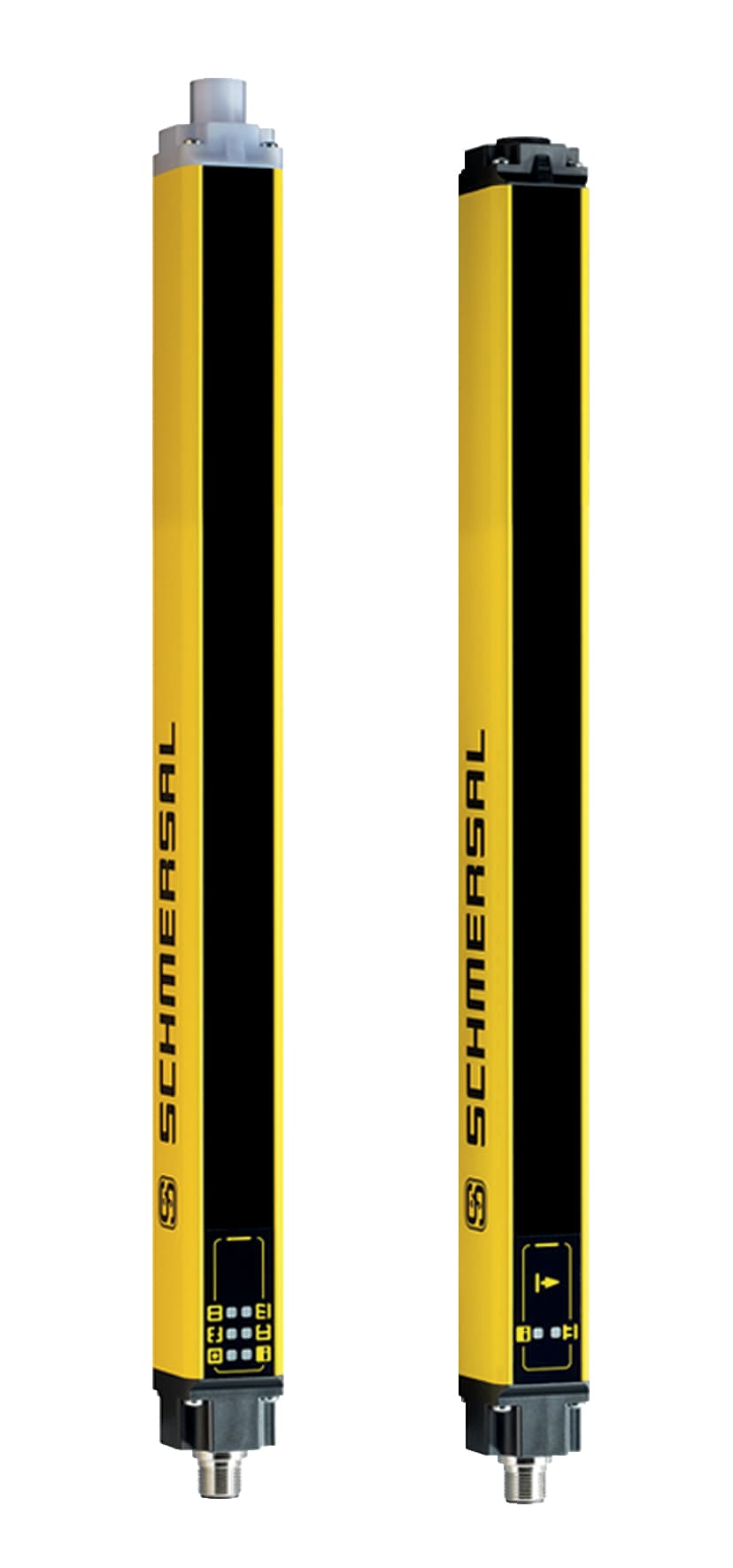

SLC440-ER-0810-30-H1 Schmersal Safety Light Curtains

SLC440-ER-0810-30-H1 on Applied Automation
Schmersal

Part#:SLC440-ER-0810-30-H1

Manufacturer:Schmersal

Alt. Part#:103039661

Product Lifecycle:Active

Get a quick Quote!

SLC440-ER-0810-30-H1 Schmersal - Safety light curtains, Safety light grids; Safety light curtains; Safety type 4 in accordance with IEC 61496-1; Status and diagnostics via App with bluetooth; active integrated set-up tool; Blanking: fixed/floating; Double acknowledgement/reset; Integrate

About the manufacturer: Schmersal is one of the manufacturers that offers Safety Light Curtains that you can order at Applied Automation site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.

Check out the SLC440-ER-0810-30-H1 Schmersal price in the box on the right side or send a quick quote.

Product Details

  • Switching voltage OSSD, HIGH signal
    24 V
  • Electrical power consumption of the transmitter, maximum
    5 W
  • Versions
    p-type
  • Output current, (fail-safe output), maximum
    0.25 A
  • Electrical power consumption of the receiver, maximum
    10 W
  • Degree of protection
    IP67 to EN 60529
  • Voltage type
    DC (direct current)
  • Protection rating
    III
  • Ambient temperature, maximum
    +50 °C
  • Storage and transport temperature, maximum
    +70 °C
  • Storage and transport temperature, minimum
    -25 °C
  • Ambient temperature, minimum
    -25 °C
  • Width of sensor
    27.8 mm
  • Height of transmitter
    891 mm
  • Terminal, Connector, Transmitter
    Connector plug M12, 4-pole
  • Height of Receiver
    901 mm
  • Length of sensor
    33 mm
  • Terminal connector, Recipient
    Connector plug M12, 8-pole
  • Reaction time, maximum
    10 ms
  • Length of the connectable cable, maximum
    100 m
  • Terminal Connector
    Connector
  • Wave length of the sensor
    850 nm
  • Range, protection field, maximum
    20,000 mm
  • Range, protection field, minimum
    4,000 mm
  • Height of the protection field
    810 mm
  • Detection ability for test bodies at v = 1.6 m/s
    30 mm
  • Number of fail-safe digital outputs
    2
  • Number of beams
    40
  • Bluetooth
    Yes
  • Standards
    EN 61496-1, EN 61496-2
  • 7-segment display
    Yes
  • Contactor control integrated
    Yes
  • Hide function
    Yes
  • Enclosure material
    Aluminium
  • Beam coding available
    Yes
  • Restart interlock (manual reset)
    Yes
  • Integral System Diagnostics, status
    Yes
  • Integral System Diagnostics
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


SLC440-ER-0810-30-H1 Description

SLC440-ER-0810-30-H1 Schmersal - Safety light curtains, Safety light grids; Safety light curtains; Safety type 4 in accordance with IEC 61496-1; Status and diagnostics via App with bluetooth; active integrated set-up tool; Blanking: fixed/floating; Double acknowledgement/reset; Integrate



Related documents SLC440-ER-0810-30-H1 Specs

Manufacturer warranty

$2,610.00

Request a quote, and we will send availability within minutes.

Select Qty:

$2,610.00

$2,610.00 each
