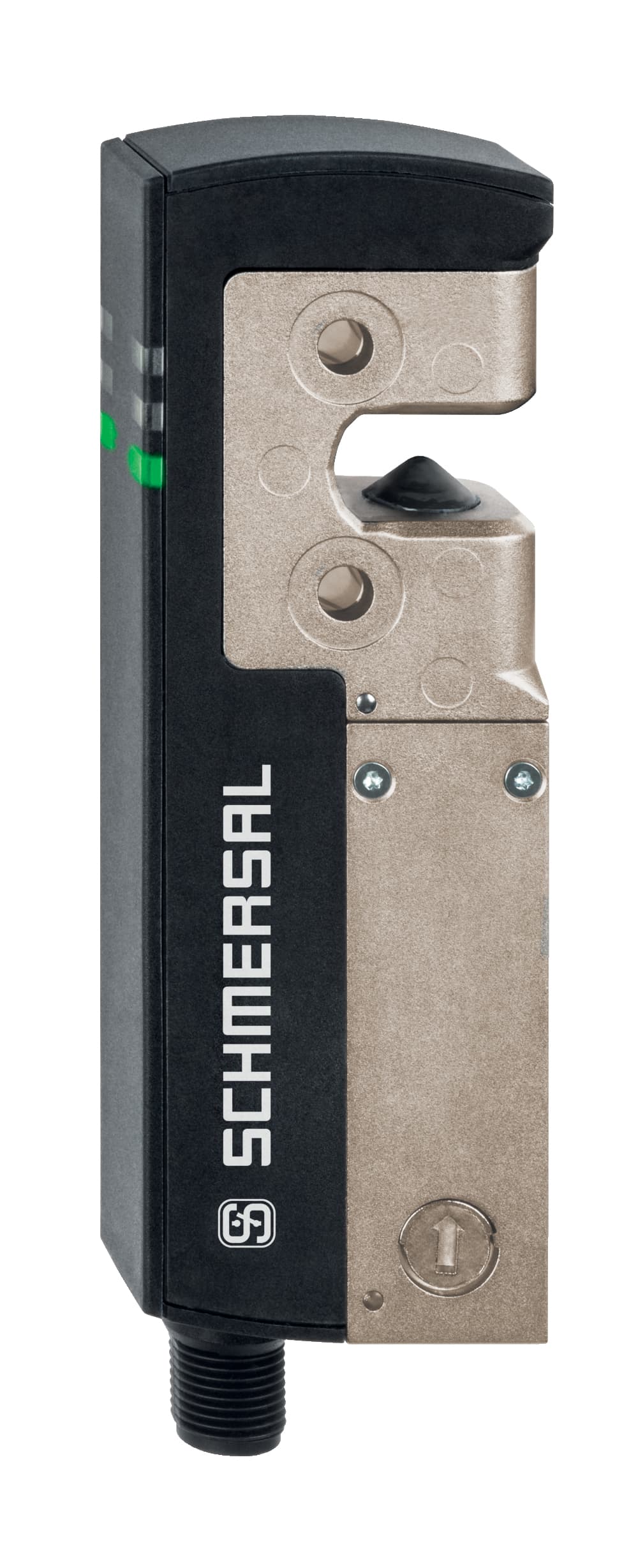

AZM40B-I1-ST-1P2P-PH Schmersal Safety Switches

Product Details

• Voltage, Utilisation category DC13
  24 VDC
• Classification ZVEI CB24I, Source
  C2
• Voltage drop Ud, maximum
  2 V
• Classification ZVEI CB24I, Sink
  C1, C2
• Current, Utilisation category DC12
  0.05 A
• Voltage, Utilisation category DC12
  24 VDC
• Current consumption at 24V
  15 mA
• Current, Utilisation category DC13
  0.05 A
• Rated operating current (safety outputs)
  250 mA
• Versions
  short-circuit proof, p-type
• Current leakage Ir
  0.5 mA
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Current consumption solenoid at switching moment, peak
  600 mA / 100ms
• Switching frequency, maximum
  0.3 Hz
• Degree of pollution to VDE 0100
  3
• Note
  Cable length and cable section alter the voltage drop depending on the output current
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Operating current
  1,200 mA
• Rated operating voltage
  24 VDC - 15 % / + 10 % (stabilised PELV)
• No-load supply current I0
  100 mA
Overvoltage category
III
Rated impulse withstand voltage Uimp
0.8 kV
Rated insulation voltage Ui
32 VDC
Protection rating
III
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 1 mm
Storage and transport temperature, minimum
-40 °C
Storage and transport temperature, maximum
+85 °C
Ambient temperature, maximum
+55 °C
Ambient temperature, minimum
+0 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Height of sensor
20 mm
Width of sensor
40 mm
Length of sensor
119.5 mm
Terminal Connector
Connector M12, 8-pole, A-coded
Actuating speed, maximum
0.5 m/s
Ensured switch distance OFF Sar
8 mm
Type of the fixing screws
DESIGN_MOUNTING_SCREWS11111111111111111112
Ensured switch distance ON Sao
1 mm
Latching force
40 N
Clamping force, maximum Fmax
2,600 N
Clamping force in accordance with ISO14119 Fzh
2,000 N
Mechanical life, minimum
200,000 Operations
Number of safety contacts
2
Interlocking principle
bistable
Series-wiring
Yes
Integral System Diagnostics, status
Yes
Safety functions
Yes
Short-circuit recognition
Yes
Manual release
Yes
Short circuit detection
Yes
Latching
Yes
Enclosure material
Glass-fibre, reinforced thermoplastic and light-alloy diecast
Actuator monitored
Yes
Standards
IEC 61508, EN 60947-5-3, EN ISO 13849-1
Reaction time, maximum
100 ms
Coding level according to ISO 14119
High
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Time to readiness, maximum
4,000 ms
Duration of risk, maximum
200 ms
Gross weight
305.9 g
general information
Individual coding
Active principle
RFID
