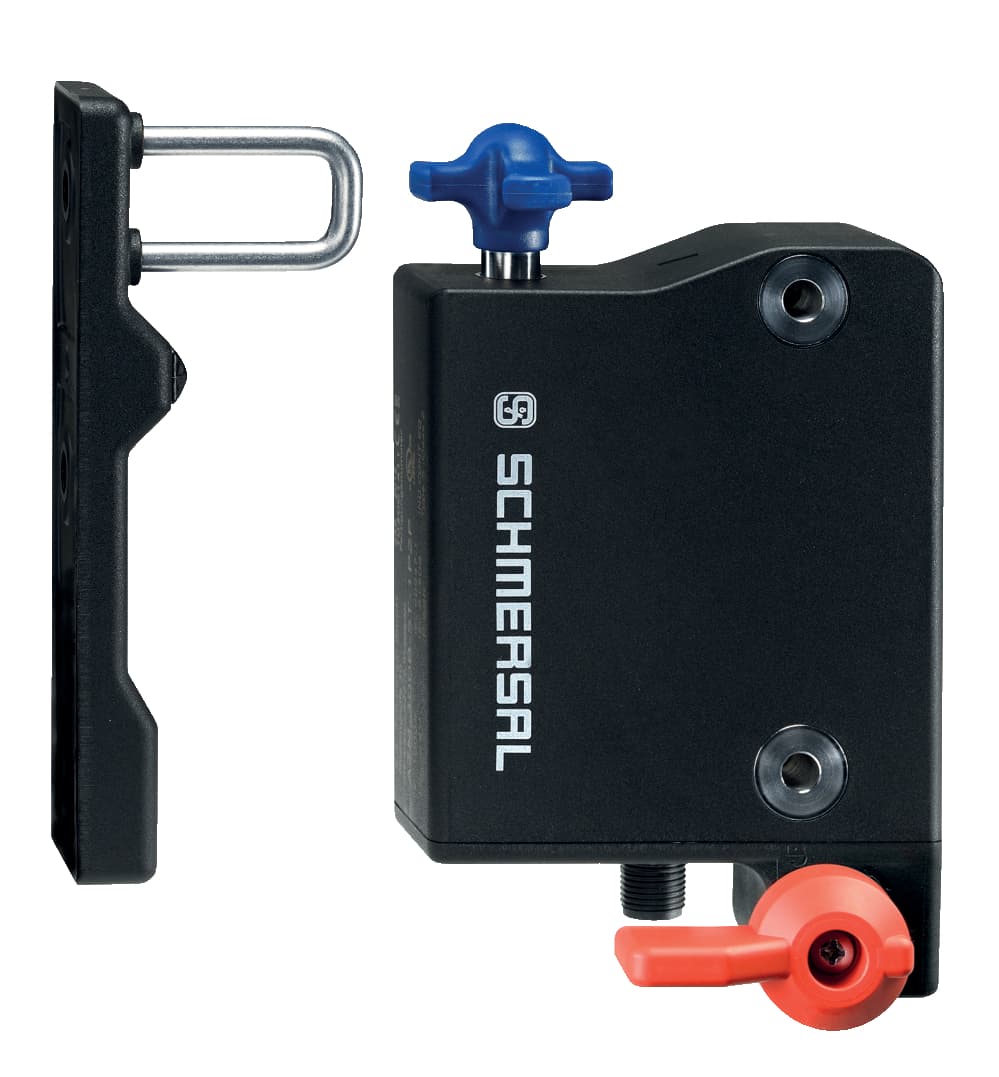

AZM300B-I2-ST-SD2P-A-T Schmersal Safety Switches

Product Details

• Wiring capacity
  50 nF
• Operation current
  150 mA
• Voltage, Utilisation category DC13
  24 VDC
• Classification ZVEI CB24I, Sink
  C1, C2
• Current, Utilisation category DC13
  0.05 A
• Test pulse duration, maximum
  0.5 ms
• Test pulse interval, typical
  1000 ms
• Current, Utilisation category DC12
  0.05 A
• Voltage, Utilisation category DC12
  24 VDC
• Current leakage Ir
  0.5 mA
• Voltage drop Ud, maximum
  4 V
• Current consumption at 24V
  5 mA
• Classification ZVEI CB24I, Source
  C2
• Required rated short-circuit current to EN 60947-5-1
  100 A
• External wiring and device fuse rating
  2 A gG
• Operating voltage, minimum
  20.4 VDC
• Note (Relative humidity)
  non-condensing, non-icing
• Versions
  short-circuit proof, p-type
• Duty cycle solenoid
  100 %
• Test pulse interval, minimum
  100 ms
Switching thresholds
−3 V … 5 V (Low), 15 V … 30 V (High)
Switching frequency, maximum
0.5 Hz
Current consumption with solenoid ON, average
200 mA
Current consumption with solenoid ON, peak
350 mA / 200 ms
No-load supply current I0
100 mA
Degree of pollution to IEC/EN 60664-1
3
Notes (Power supply, general)
stabilised PELV power supply
Operating voltage, maximum
26.4 VDC
Overvoltage category
III
Rated impulse withstand voltage Uimp
0.8 kV
Protection rating
III
Rated insulation voltage Ui
32 VDC
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Relative humidity, maximum
93 %
Storage and transport temperature, maximum
+90 °C
Storage and transport temperature, minimum
-10 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
Ambient temperature, maximum
+60 °C
Ambient temperature, minimum
+0 °C
Length of sensor
146 mm
Height of sensor
55 mm
Width of sensor
87.5 mm
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum
200 m
Ensured switch distance OFF Sar
20 mm
Ensured switch distance ON Sao
1 mm
Terminal Connector
Connector M12, 8-pole, A-coded
Switch distance
2 mm
Tightening torque of the fixing screws, minimum
6 Nm
Tightening torque for the fixing screws, maximum
7 Nm
Type of the fixing screws
2x M6
Latching force, adjustable, position 2
50 N
Latching force, adjustable, position 1
25 N
Clamping force, maximum Fmax
1,500 N
Clamping force in accordance with ISO14119 Fzh
1,150 N
Angular offset between interlocking device and actuator, maximum
2 °
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Mechanical life, minimum
1,000,000 Operations
Integral System Diagnostics, status
Yes
Safety functions
Yes
Number of fail-safe digital outputs
2
Latching
Yes
Series-wiring
Yes
Short-circuit recognition
Yes
Emergency exit
Yes
Short circuit detection
Yes
Actuator monitored
Yes
Serial diagnostics
Yes
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Standards
IEC 61508, IEC 60947-5-3, EN ISO 13849-1
Active principle
RFID
general information
Individual coding, multiple teaching
Time to readiness, maximum
5,000 ms
Coding level according to ISO 14119
High
Frequency band RFID
125 kHz
Transmit power, maximum
-6 dB/m
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Duration of risk, maximum
200 ms
Gross weight
647 g

Related documents AZM300B-I2-ST-SD2P-A-T Specs
